Off-grid Inverter
IVGM75~125kW-P3G1
What sets it apart.
Explore the key features, performance capabilities, and practical advantages that define this product.
Three-phase hybrid + 10 MPPT
Up to 12 units in parallel
Scalable system expansion for higher power requirements
2x PV oversizing
Dual battery inputs
Less than 5 ms
Ultra-fast off-grid switching for essential loads
Flexible energy management
Self-consumption, Time of Use, Selling First, Zero Export, and programmable battery/grid priority.
Programmable GEN port
Supports generator input, smart load output, and microinverter access.
Wi-Fi cloud monitoring
Remote system monitoring through the Fsolar Smart Cloud platform
IP66 protection
Enhanced protection for demanding installation environments
Specifications
| Model | IVGM75KHP3G1 | IVGM80KHP3G1 | IVGM100KHP3G1 | IVGM125KHP3G1 | |||
|---|---|---|---|---|---|---|---|
| Rated AC Input / Output Power | 75 kW | 80 kW | 100 kW | 125 kW | |||
| Max. AC Input / Output Power | 82.5 kVA | 88 kVA | 110 kVA | 137 kVA | |||
| Max. PV Input Power | 150 kW | 160 kW | 200 kW | 250 kW | |||
| Max. DC Input Voltage | 1,000 V | ||||||
| MPPT Voltage Range | 150-850 V | ||||||
| Number of MPPT Trackers | 8 | 10 | |||||
| Battery Voltage Range | 160-1,000 V | ||||||
| Battery Inputs / Max. Charge & Discharge Current | 2 / 120 A + 120 A | ||||||
Features

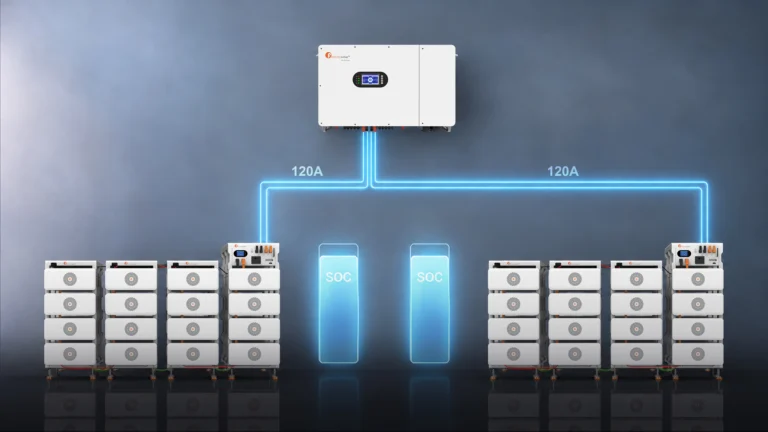

Dual Independent Batteries
7" HD Screen
TOU
IP66
Reverse Current Protection
Single Phase Input, Three Phase Output
What is
IVGM75~125kW-P3G1?
The 125kW hybrid solar inverter is designed for commercial and industrial energy storage. It ensures 0ms grid-to-off-grid transfer for uninterrupted power and supports single-phase input with three-phase output.
Supports 200% PV oversizing and dual independent battery inputs for maximum flexibility and solar utilization.
Active PID recovery ensures long-term performance, while up to 12 units in parallel enable scalable system expansion.
Compatible with generators, smart loads, and microinverters, the inverter features IP66 protection and broad grid standard compatibility. Remote monitoring via the Fsolar APP enables intelligent, efficient energy management.
0 ms
0 ms transfer enables seamless switching between grid-tied and off-grid operation
10 MPPTs
10 MPPTs (45A each) 20 Strings
Active Pid Recovery Function
It helps reduce PID-related power loss in PV modules, maintaining higher long-term solar generation efficiency for the 125kW inverter system.
Real Time Monitoring
Enable real-time monitoring on the Fsolar App
Application Scenarios
Factory
Store
Warehouse
Villa
School
Resident
