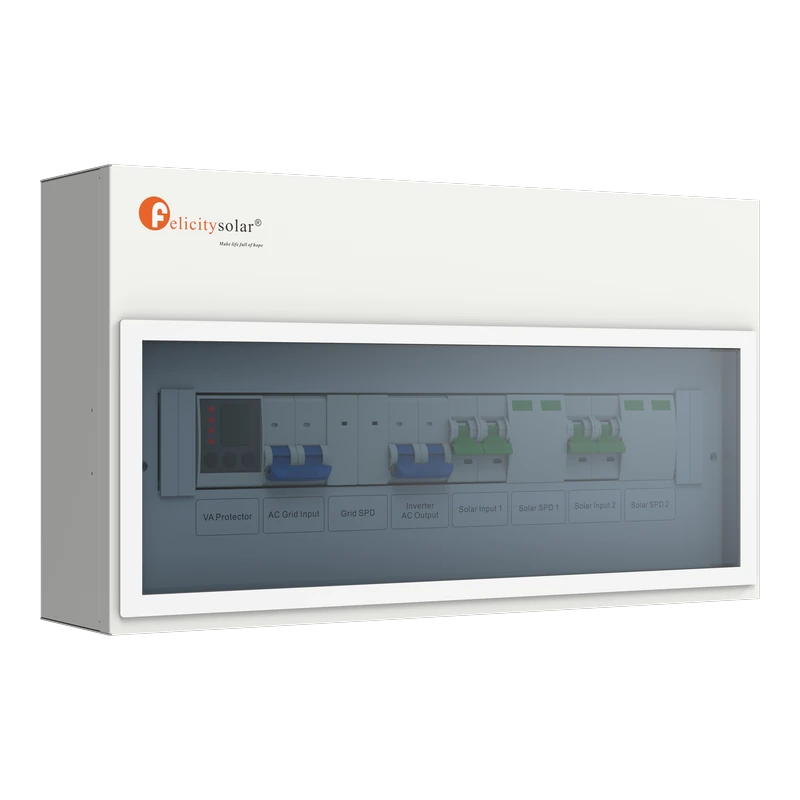

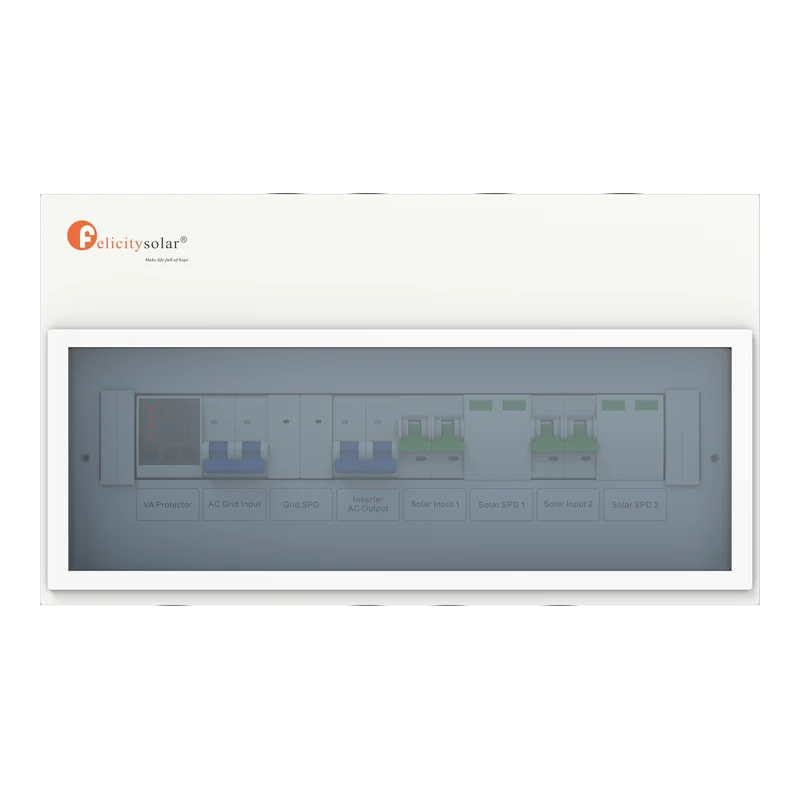

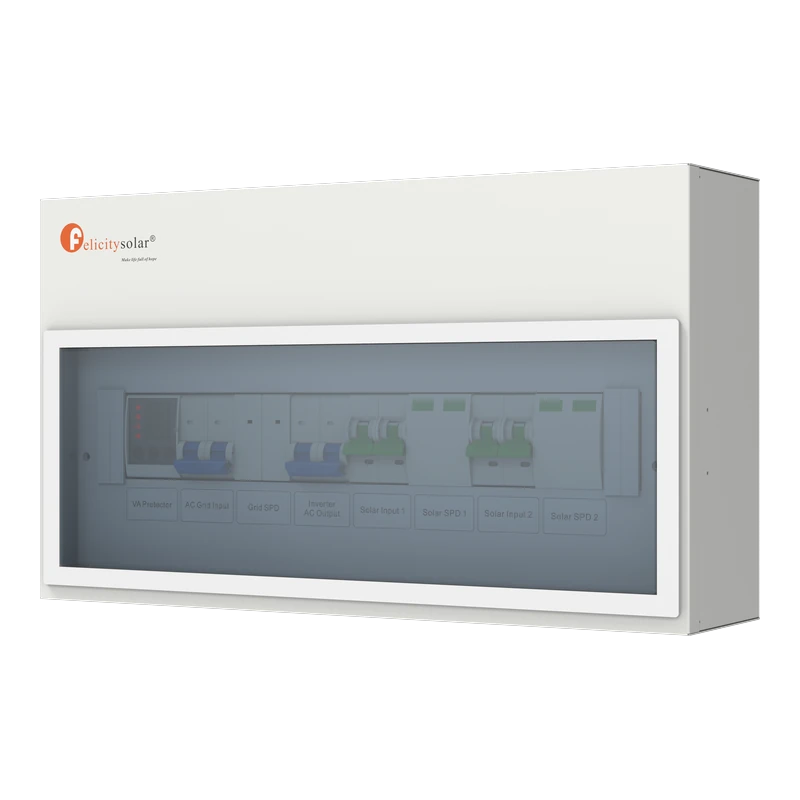

Circuit Breaker Box

Ebox-63~100A

63~100A | Breaker

What sets it apart.

Explore the key features, performance capabilities, and practical advantages that define this product.

All-in-One AC + DC Protection

Integrates circuit breakers and surge protection in one box to safely connect the inverter, grid, and loads while protecting the entire PV system.

Type II Surge Protection

Dedicated SPDs shield equipment from lightning strikes and surge voltage on both the AC and DC sides.

63A / 100A Rated Current

Two models to match your system scale — Ebox-63A for 63A systems and Ebox-100A for 100A systems.

AC Circuit Breakers

Provide over-current and short-circuit protection on the AC side.

DC Circuit Breakers

Connect to PV strings and provide over-current and short-circuit protection on the DC side.

GPS8 VA Protection Devices

Over-voltage, under-voltage, and over-current protection for household loads — with adjustable setpoints, automatic self-reset after faults, and LED status display.

Wide Operating Range

Reliable protection from -25°C to +60°C for demanding installation environments.

Floor-mounted

Stable, space-efficient installation

Wide inverter compatibility

Works with leading inverter brands

Specifications

Detail Specifications of Ebox-63~100A

Model	Ebox-63A	Ebox-100A
Rated Current	63A	100A
Rated Voltage	230 VAC
SPD Type	Type II
Protection Level	IP20
Frequency	50Hz
Operating Temperature	-25°C ~ +60°C
Product Dimension (mm)	385×220×94	332×220×94
Net Weight	4kg	3.4kg

Differences

Overview:
Ebox-63~100A

The EBox is designed for photovoltaic and energy storage systems to provide electrical protection and safe connection between the inverter, grid, and loads. It integrates circuit protection and surge protection components to improve system safety and reliability.
