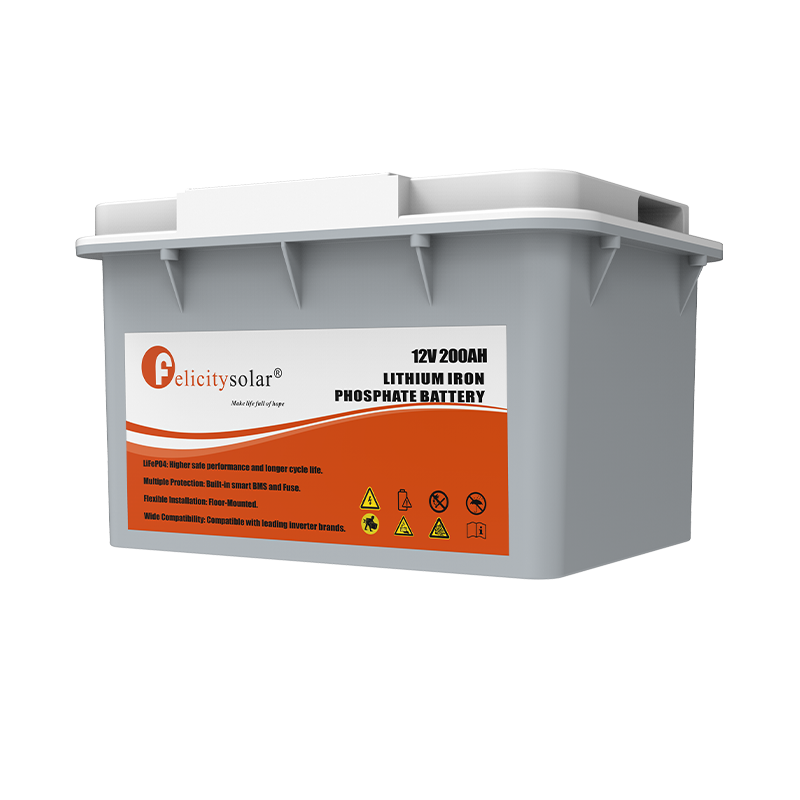

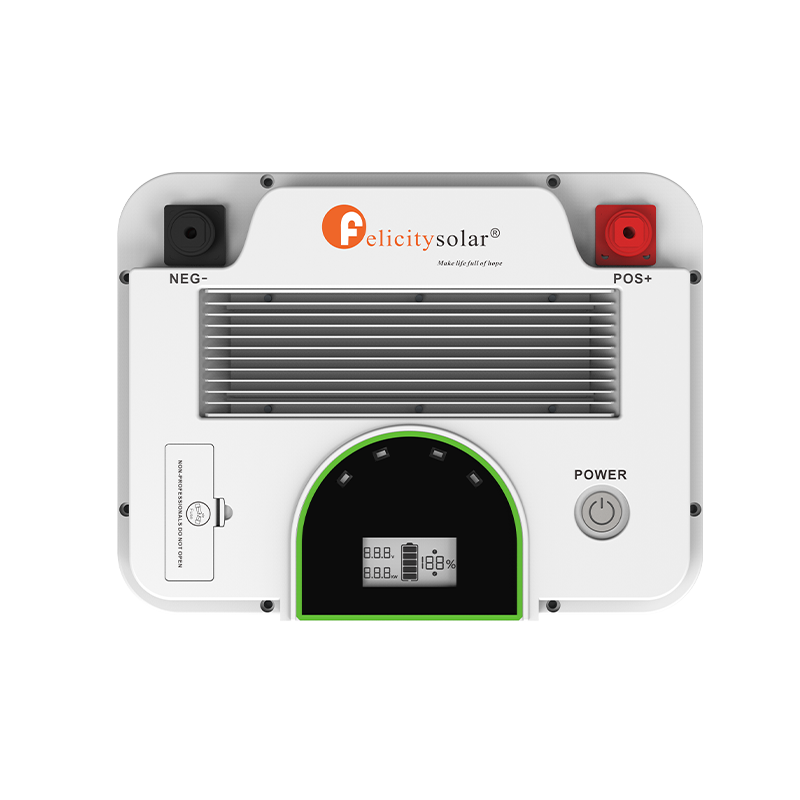

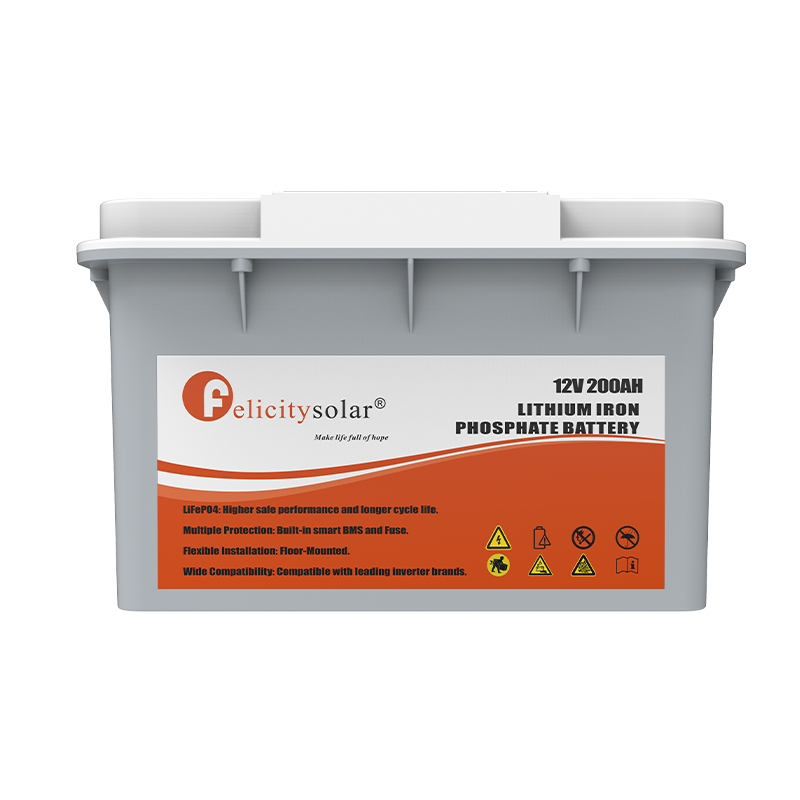

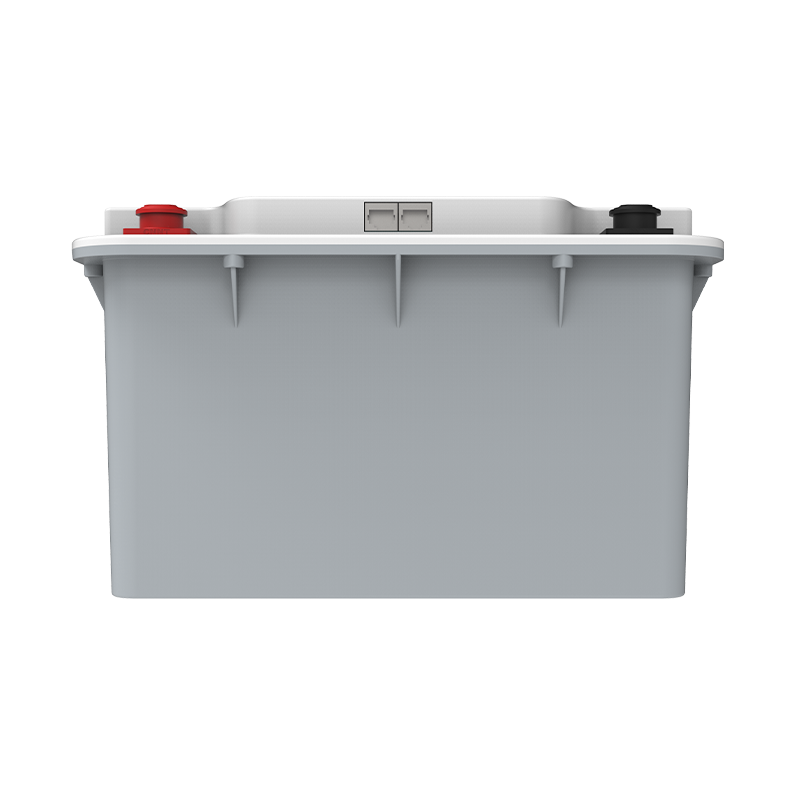

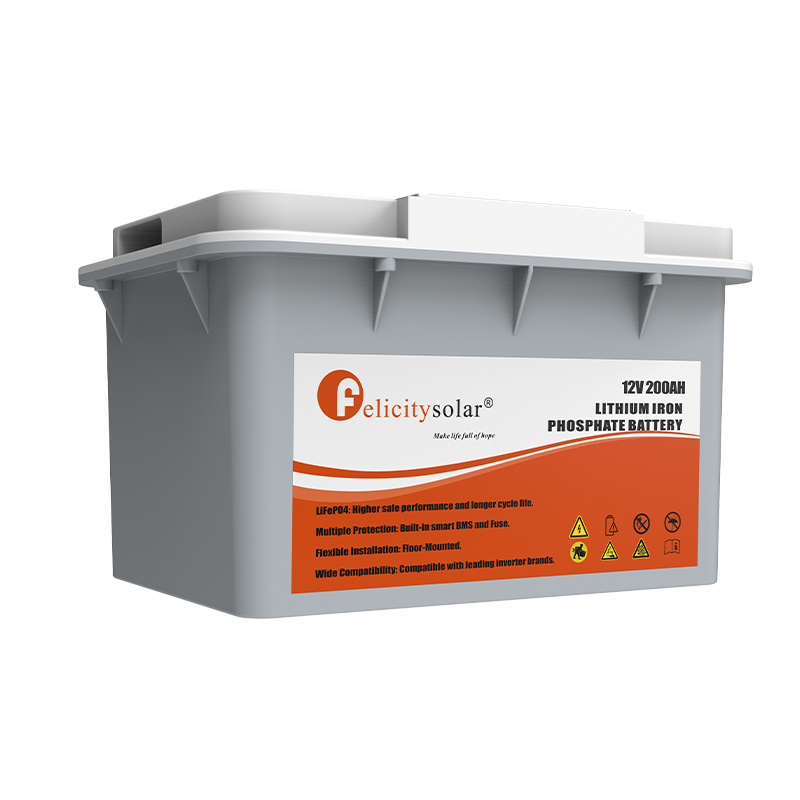

Lithium Iron Battery
FLA12171-EU
2.2kWh | 12V | Low Voltage
LiFePO4
Higher safe performance and longer cycle life.
Multiple Protection
Built-in smart BMS, and Fuse.
Wide Compatibility
Compatible with leading inverter brands.
High Scalability
Up to 16 units in parallel (35.2kWh)
Specifications
| Model | FLA12171-EU | ||||||
|---|---|---|---|---|---|---|---|
| Operating Voltage | 11.2-14.4V | ||||||
| Battery Type | LiFePO4 | ||||||
| Energy | 2.2kWh | ||||||
| Depth of Discharge(DOD) | ≥95% | ||||||
| Scalability | Up to 16 units in parallel (35.2kWh) | ||||||
| Communication | CAN, RS485 | ||||||
| Protection Level | IP21 | ||||||
| Cycle Life | ≥6000@ 25°C | ||||||
Superior System Expansion Capability
2.2kWh
Unit Battery Capability
35.2kWh
Up to 16 units in parallel (35.2kWh).
The FLA12171‑EU designed for European household and small‑scale energy storage scenarios, this unit features a compact structure, simple wall/floor installation, and strong compatibility with mainstream inverters. With a nominal 12V system, a maximum charging voltage of 14.4V, and support for high‑rate charging and discharging, it provides reliable, long‑life power for daily backup, off‑grid systems, and solar energy storage applications.
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Multiple Bracket Options
9-Layer Bracket
Medium capacity configuration with high cost performance
13-Layer Bracket
Medium capacity configuration with high cost performance
16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
Factory
Store
Warehouse
Valli
School
Resident
Hospital
Download
- [UN38.3 TEST Summary] FLS2FB801G01_FLA12171-EU
- [UN38.3 TEST REPORT] FLS2FB801U01_FLA12171-EU
- [MSDS] FLS2FB801SDS01_FLA12171-EU
- [Hazard and Classification Identification] FLS2FB801DI01_FLA12171-EU
- [GHS Label Design Report] FLS2FB801P01_FLA12171-EU
- [965 Sea Shipping] FLS2FB801YM501_FLA12171-EU
- [965 Land Transport] FLS2FB801YL501_FLA12171-EU
