T-REX Series
T-REX -10KLP3G01
10kW
Low Voltage
2MPPTs
IP65
Three Phase
Product Introduction

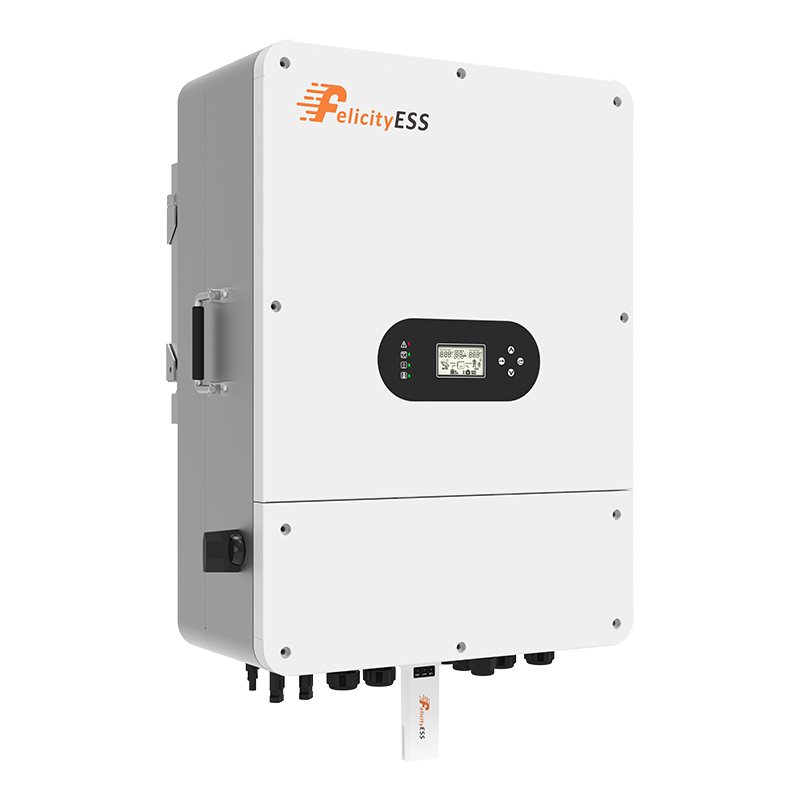

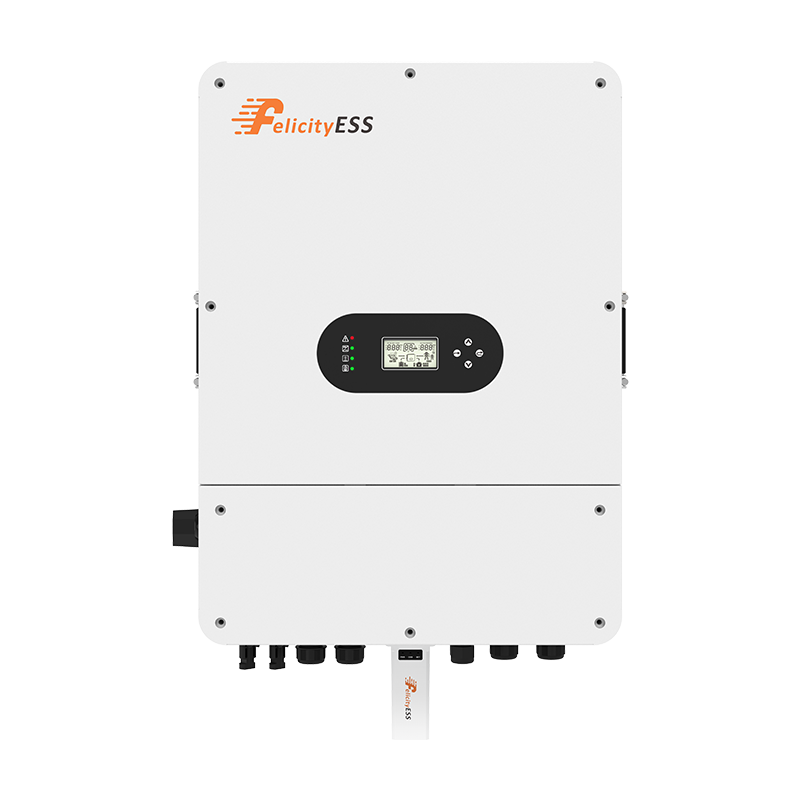

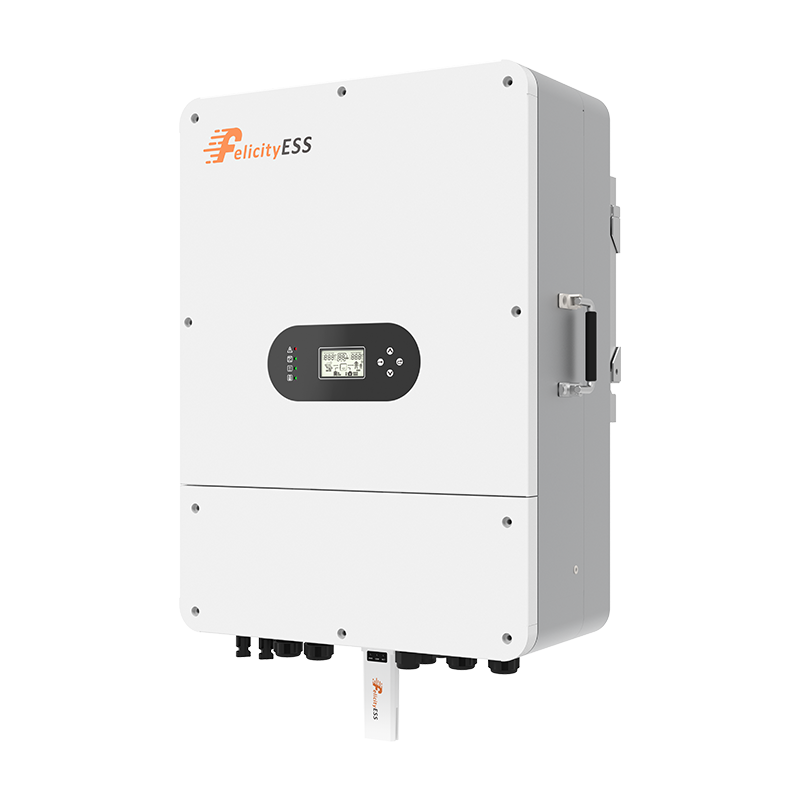

FelicityESS T-REX-10KLP3G01 is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its
comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging,AC/solar charging, and acceptable input voltage based on different applications.
Product Advantages
• 230/400Vac Three phase output.
• Self-consumption and feed-in to the grid.
• Auto restart function applicable.
• Programmable supply priority for solar, battery or grid.
• Programmable multiple operation modes: On grid, off grid and backup.
• With power limit function, prevent excess power overflow to the grid.
• Supporting WiFi monitoring.
• 2 MPP trackers, 1 string per MPP tracker.
• 1 battery input connection port.
• Wide battery voltage input range (40V~60V), max. charging and discharging current 200A.
• Support storing energy from diesel generator.
• The off-grid switching time is within 20ms.
• Support multi working modes: General mode, Backup mode, ECO mode, Zero Export To Load, Zero Export To CT.
• IP65 protection level.
• Self-consumption and feed-in to the grid.
• Auto restart function applicable.
• Programmable supply priority for solar, battery or grid.
• Programmable multiple operation modes: On grid, off grid and backup.
• With power limit function, prevent excess power overflow to the grid.
• Supporting WiFi monitoring.
• 2 MPP trackers, 1 string per MPP tracker.
• 1 battery input connection port.
• Wide battery voltage input range (40V~60V), max. charging and discharging current 200A.
• Support storing energy from diesel generator.
• The off-grid switching time is within 20ms.
• Support multi working modes: General mode, Backup mode, ECO mode, Zero Export To Load, Zero Export To CT.
• IP65 protection level.
Model
T-REX-10KLP3G01
Mac.recommended PV Power
13000W
Bat Voltage
40V~60V
Number of MPPT Trackers/Number of Strings per MPPT
2/2
Phase
Three Phase
Protection Degree
IP65
Certification
VDE4105; G99/1; EN; CEI; AS; NRS
