IVGM 8~25kW-P3G3
8~25kW
High voltage
Hybrid
Three phase
Product Introduction

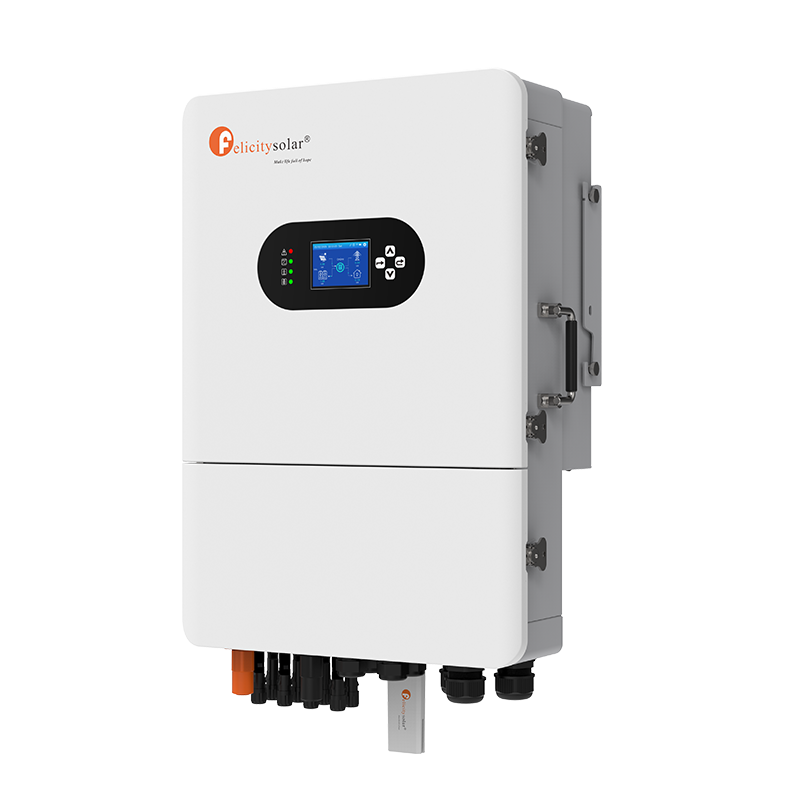

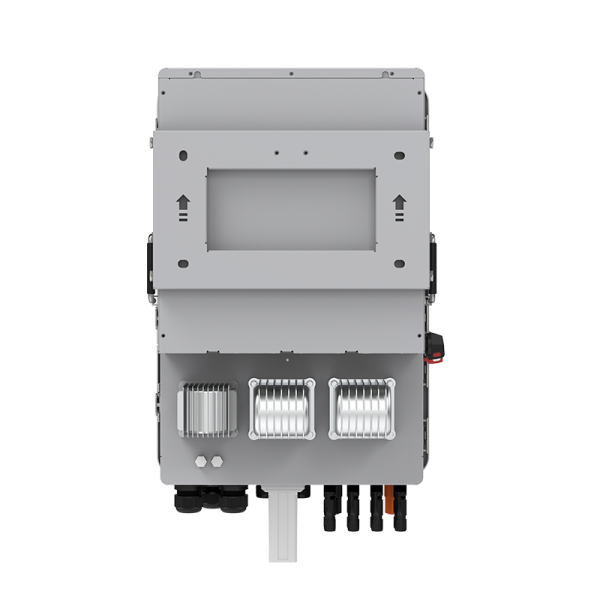

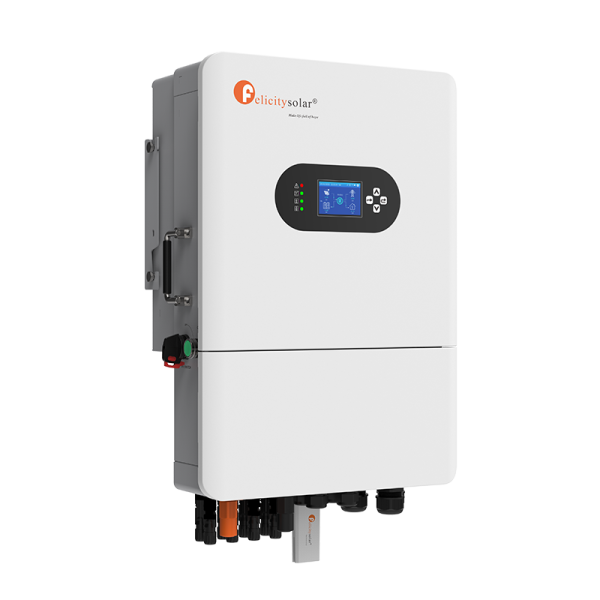

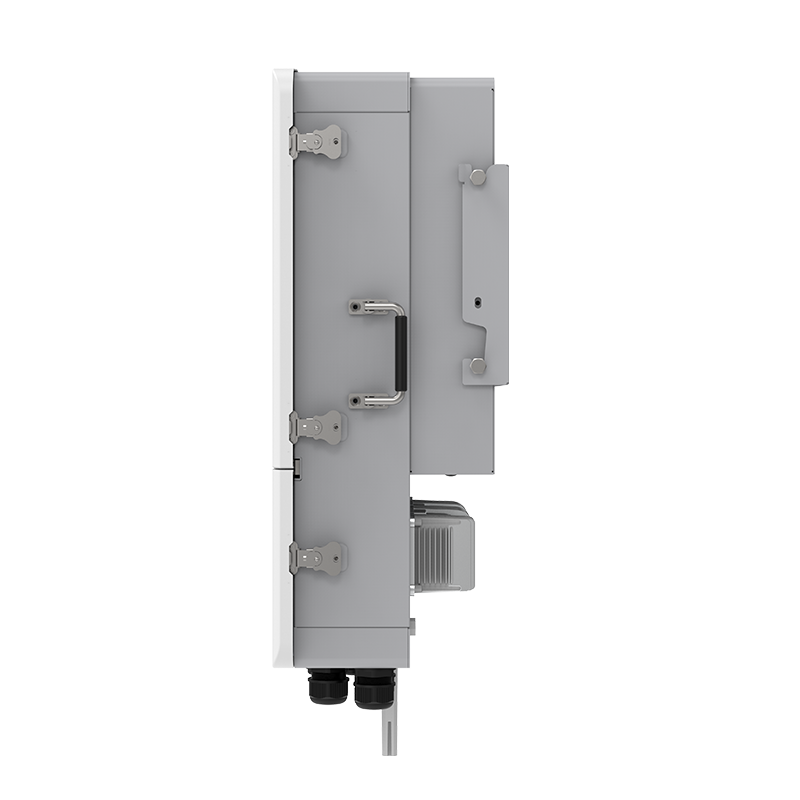

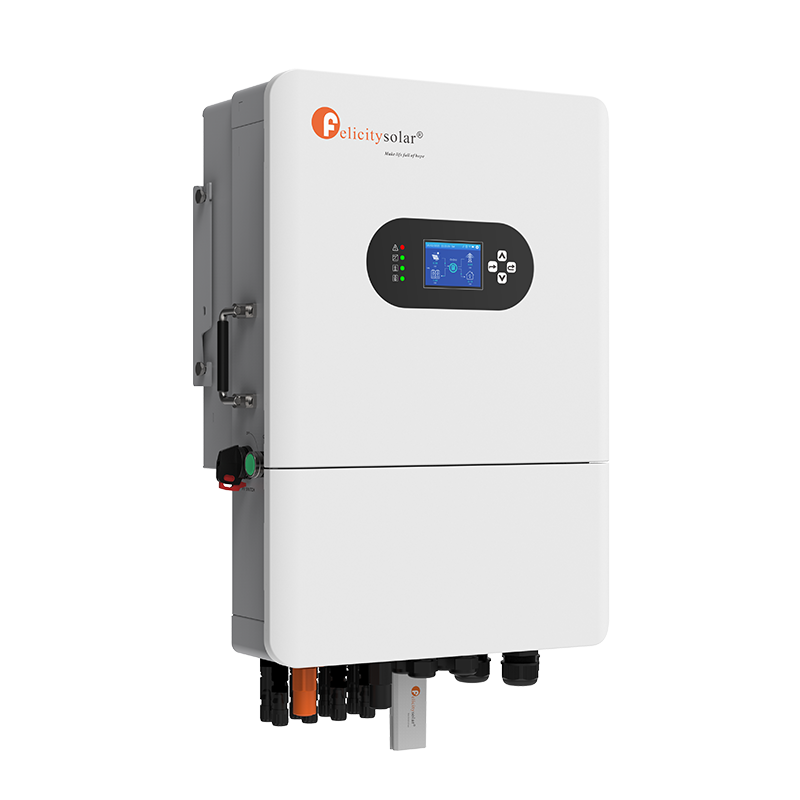

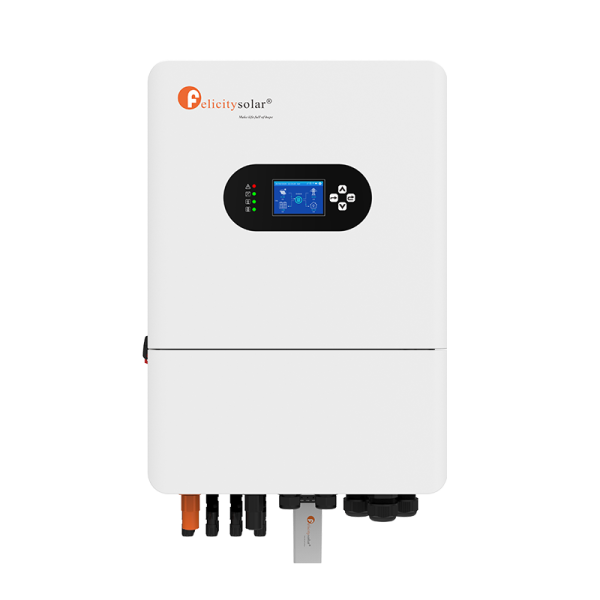

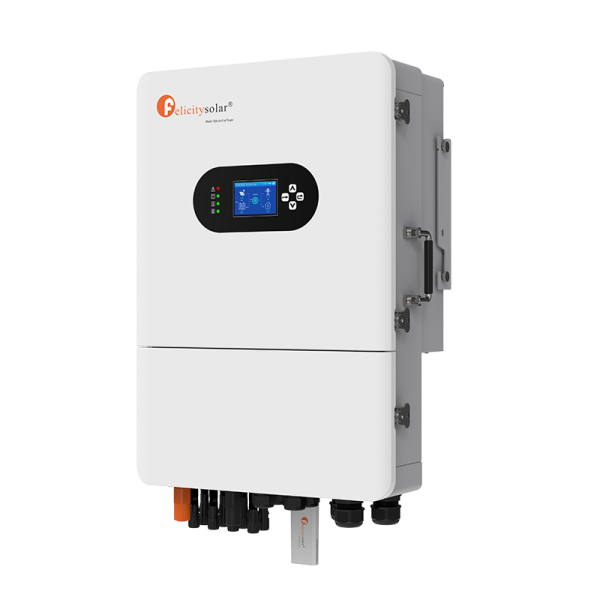

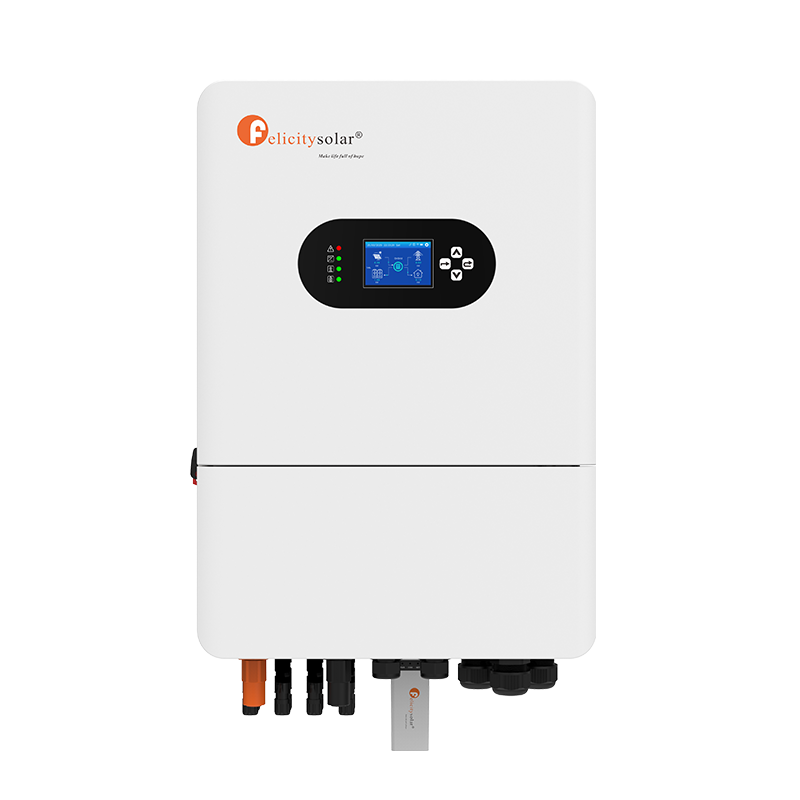

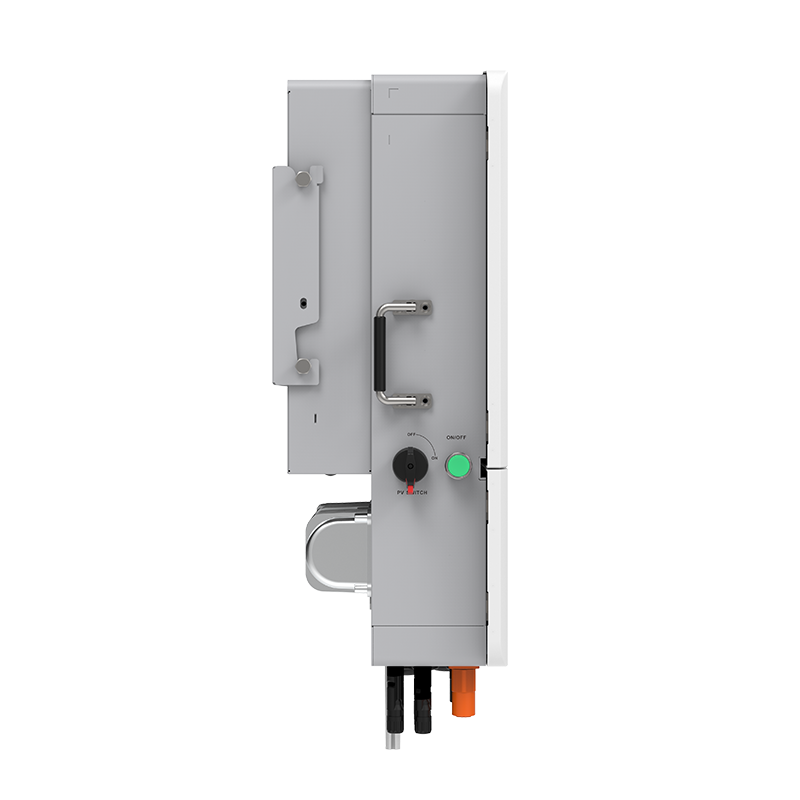

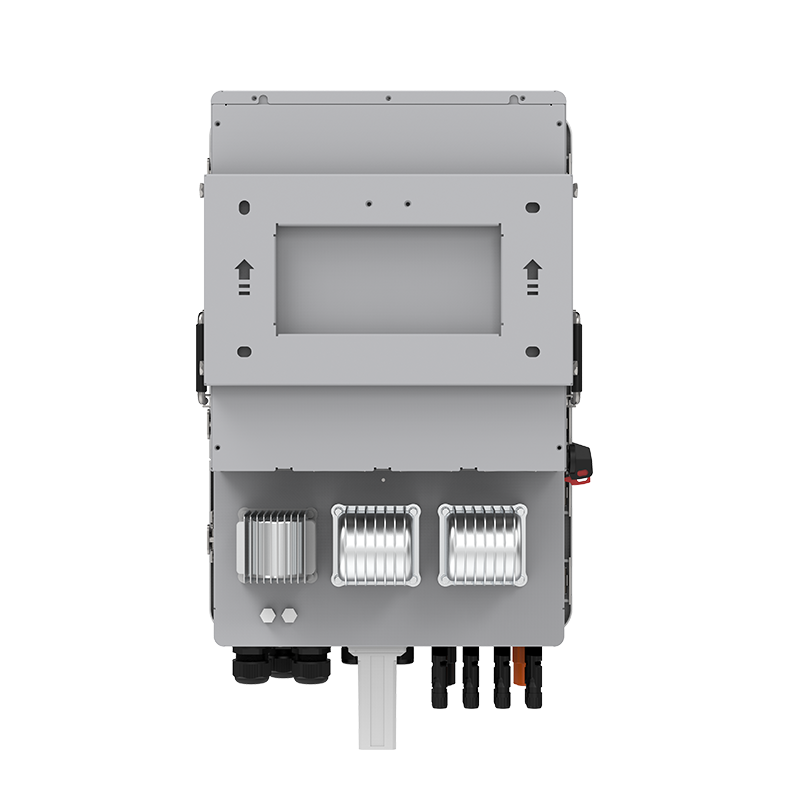

This hybrid solar inverter is designed for residential and small commercial applications, providing stable power supply through the integration of:
a, PVmodules
b, Battery storage systems
c, Utility grid and optional generator
It supports both on-grid and off -grid operation, ensuring power availability during grid outages.
a, PVmodules
b, Battery storage systems
c, Utility grid and optional generator
It supports both on-grid and off -grid operation, ensuring power availability during grid outages.
Product Advantages
• 230V / 400V three-phase pure sine wave output
• Self-consumption and grid feed-in support
• Automatic restart during AC recovery
• Programmable power source priority (PV / Battery / Grid)
• Multiple operating modes: On-grid, Off-grid, UPS
• Power limiting function to prevent grid export overflow
• Built-in WiFi monitoring & Solar Smart Cloud platform
• 4-channel PV input, 2 MPPTs, 1.6x overconfiguration capability
• Wide battery voltage range
• Max charge/discharge current: up to 50A
• Generator input support with smart control
• Time-of-Use, Selling First, Zero Export to Grid / CT modes
• Parallel operation support: up to 12 units
• Ip65 protection level
• For installers: Feature availability may depend on system configuration and firmware version.
• Self-consumption and grid feed-in support
• Automatic restart during AC recovery
• Programmable power source priority (PV / Battery / Grid)
• Multiple operating modes: On-grid, Off-grid, UPS
• Power limiting function to prevent grid export overflow
• Built-in WiFi monitoring & Solar Smart Cloud platform
• 4-channel PV input, 2 MPPTs, 1.6x overconfiguration capability
• Wide battery voltage range
• Max charge/discharge current: up to 50A
• Generator input support with smart control
• Time-of-Use, Selling First, Zero Export to Grid / CT modes
• Parallel operation support: up to 12 units
• Ip65 protection level
• For installers: Feature availability may depend on system configuration and firmware version.
| Model | IVGM25KHP3G3 | IVGM20KHP3G3 | IVGM15KHP3G3 | IVGM12KHP3G3 | IVGM10KHP3G3 | IVGM9K9HP3G3 | IVGM8KHP3G3 |
|---|---|---|---|---|---|---|---|
Rated AC Input/Output Power |
25kW |
20kW |
15kW |
12kW |
10kW |
9.9kW |
8kW |
Relate AC Voltage |
220/380Vac, 230/400Vac (-20%~+15%) | ||||||
MPPT Range |
200~850Vd.c. | ||||||
PV Input Current |
30+30 (A) |
20+20 (A) |
20+20 (A) | ||||
Max. DC Input Power |
40kW |
32kW |
24kW |
19.2kW |
16kW |
15.8kW |
12.8kW |
AC Wiring Mode |
3L+N+PE | ||||||
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||||||
Protection Degree |
IP65 | ||||||
