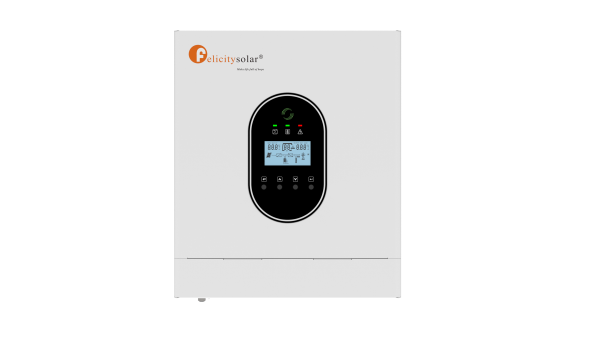

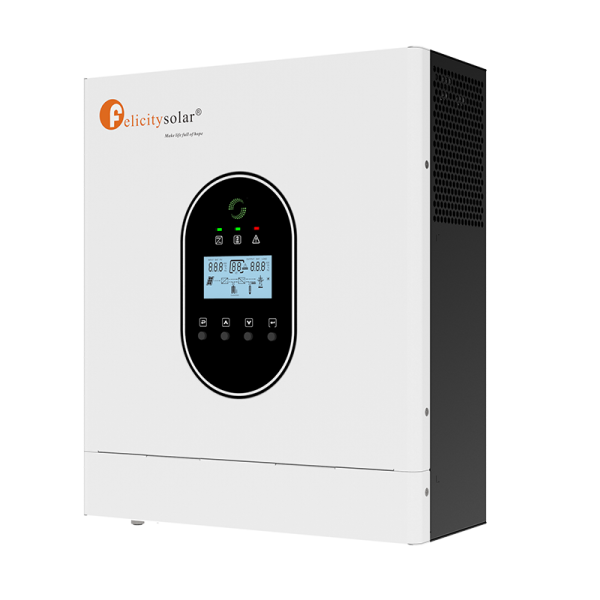

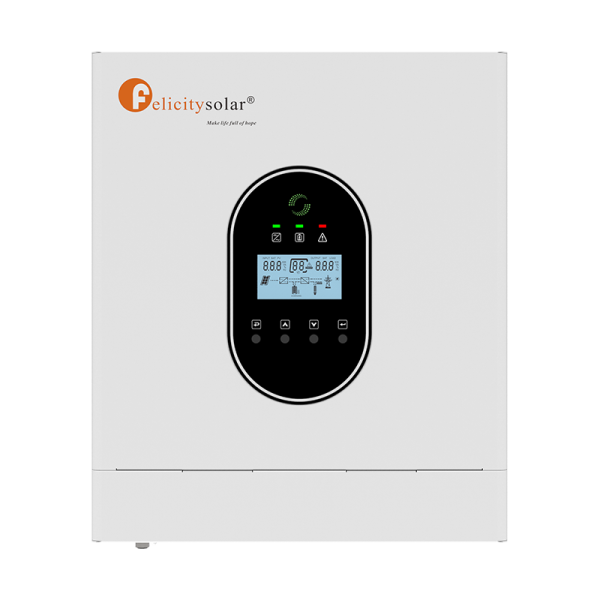

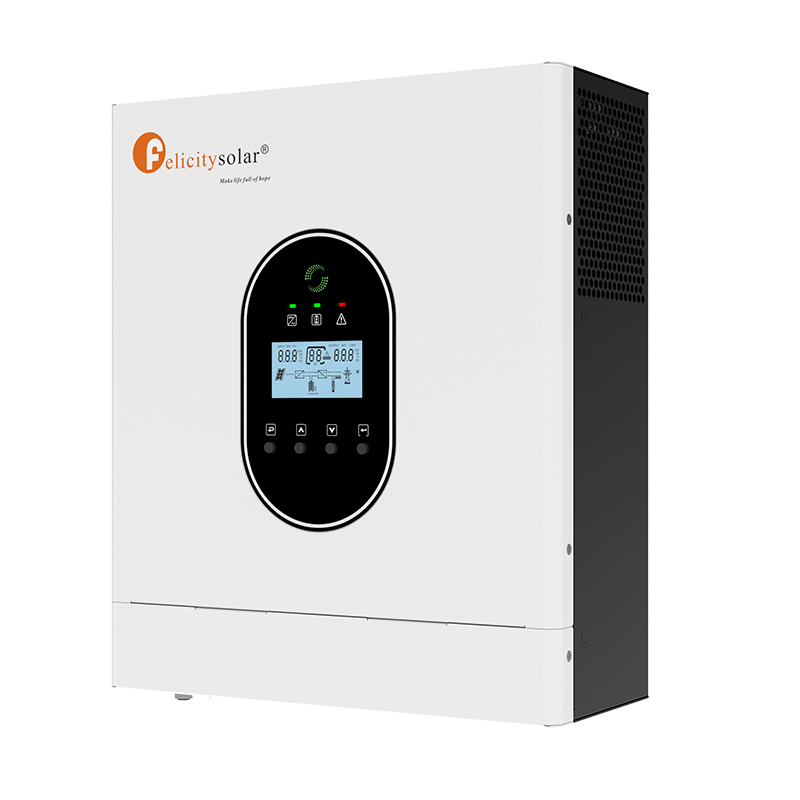

IVCM 1/2/3kW-PRO
1~3kW
Low Voltage
High frequency
24V
Off-grid
Single phase
Product Introduction
This is a multi-function inverter/charger,combining functions of inverter,MPPT solar charger and battery charger tooffer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority,and acceptable input voltage based on different applications.
Product Advantages
● Depending on the model, Turbo mode can be enabled in APL mode to use up to three times the maximum rated load.
● Support parameters setting via LCD screen (input voltage/charging current/charge mode).
● Overload/ over temperature/ short circuit protection
● Compatible with mains voltage or generator power.
● Built-in MPPT solar charge controller
● Auto restart while AC is recovering
● Cold start function
● Support parameters setting via LCD screen (input voltage/charging current/charge mode).
● Overload/ over temperature/ short circuit protection
● Compatible with mains voltage or generator power.
● Built-in MPPT solar charge controller
● Auto restart while AC is recovering
● Cold start function
| Model | IVCM1024-PRO | IVCM2024-PRO | IVCM3024-PRO |
|---|---|---|---|
Rated Output Power |
1kW |
2kW |
3kW |
Nominal DC Input Voltage |
12V |
24V |
24V |
Nominal Input Voltage |
230Vac | ||
Max Bypass Overload Current |
10A |
15A |
30A |
Input Voltage Range |
90-280Vac | ||
Nominal Output Voltage |
Dependent on battery type | ||
Max Charge Current |
20A |
30A |
30A |
Max PV Open Circuit Voltage |
105V |
145V |
145V |
Max Solar Charging Current |
60A | ||
