LiFePO4
FLS48050SG1
What sets it apart.
Explore the key features, performance capabilities, and practical advantages that define this product.

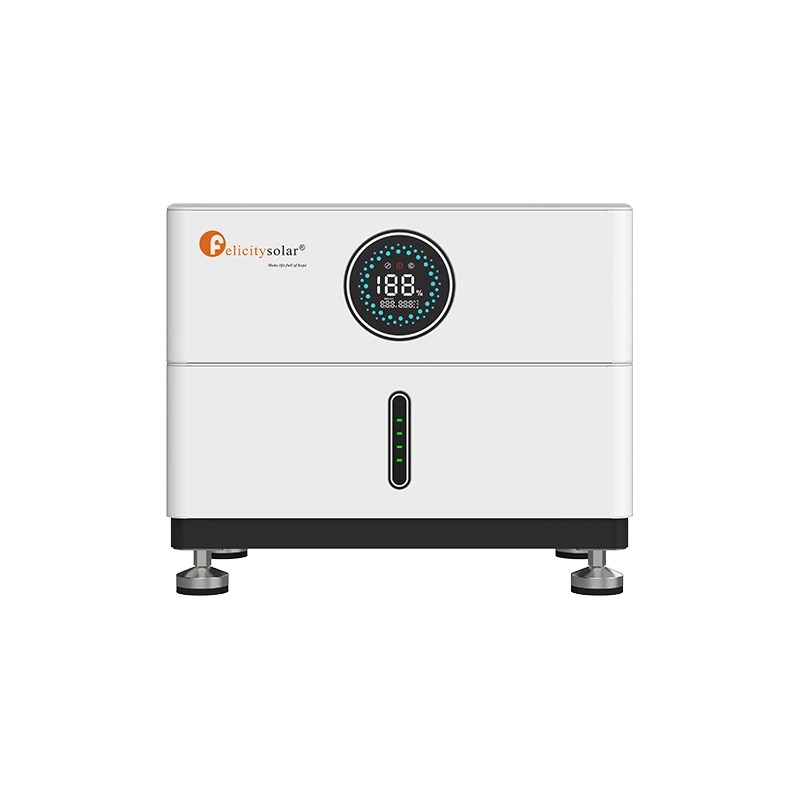

2.56kWh LiFePO4 Module
Single-unit nominal energy of 2.56kWh at 51.2V.
≥6,000 Cycle Life
Long cycle life of at least 6,000 cycles.
50A Max Charge/Discharge
Maximum continuous charge and discharge current of 50A.
≥95% Depth of Discharge
Usable capacity with DOD of at least 95%.
IP65 Enclosure Rating
Protected enclosure suitable for demanding indoor environments.
Built-in Smart BMS and Protection
Built-in smart BMS, breaker, and fuse deliver comprehensive protection, while RS485/CAN communication and built-in WIFI enable inverter compatibility and remote battery data monitoring.
Built-in WIFI Monitoring
Remotely monitor battery pack data via APP.
Floor-Mounted Installation
Flexible floor installation with simple modular stacking.
10-Year Warranty
Backed by a 10-year warranty period.
Specifications
| Model | FLS48050SG1 |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Energy | 2.56kWh |
| Nominal Capacity | 50Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8~57.6V |
| Max. Continuous Charge/Discharge Current | 50A |
| Depth of Discharge (DOD) | 95% |
| Cycle Life | ≥6000 |
Superior System Expansion Capability
2.56kWh
Nominal energy of a single FLS48050SG1 battery unit.

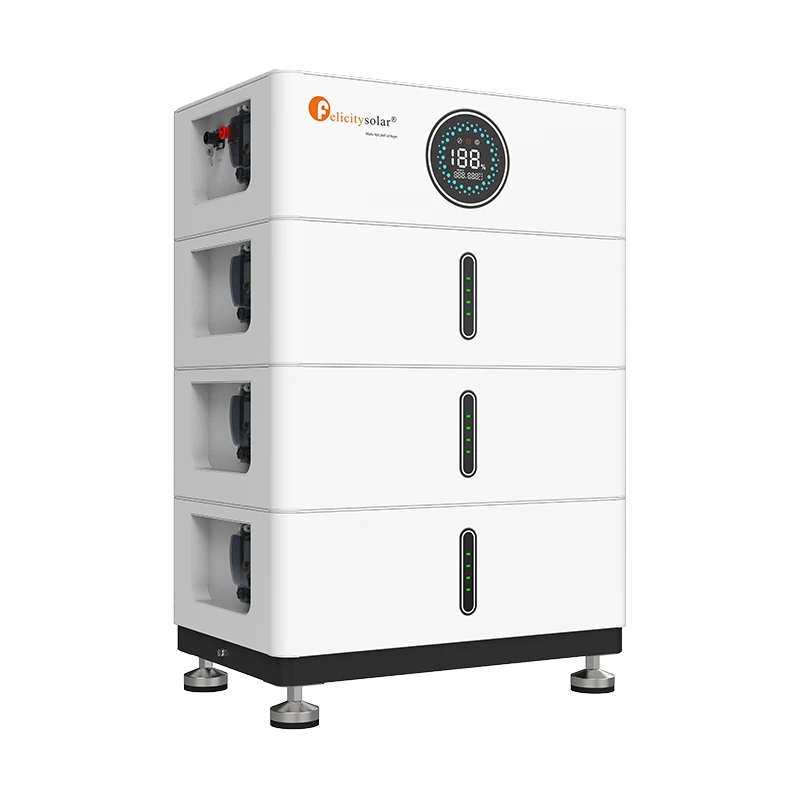

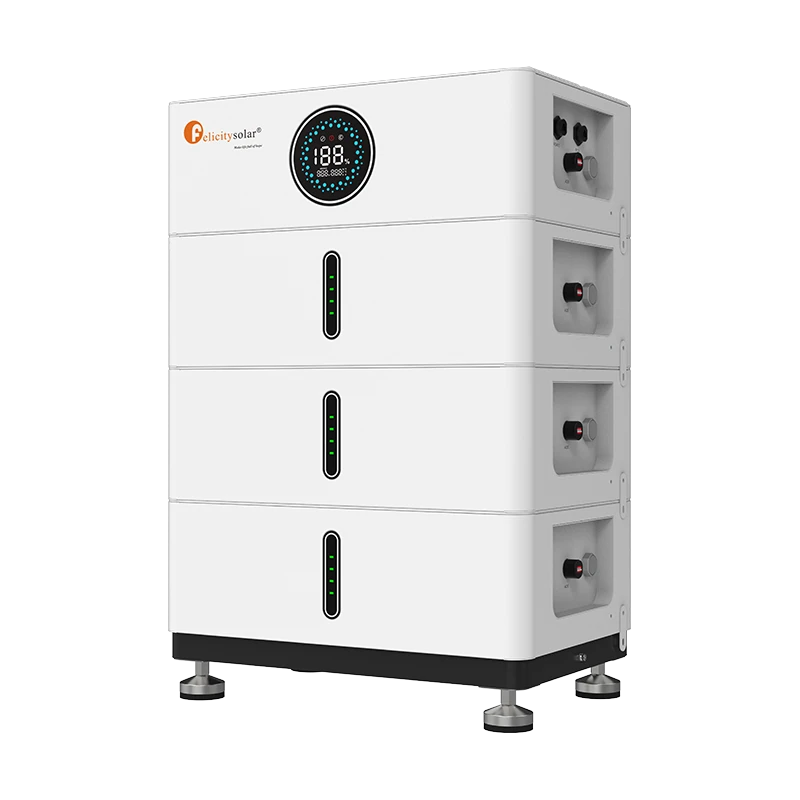

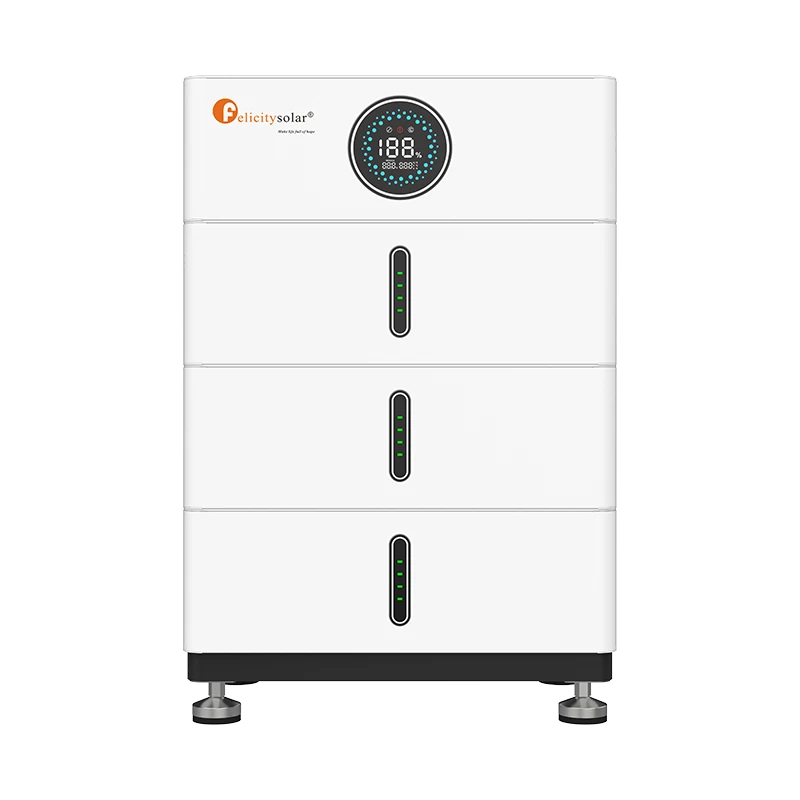

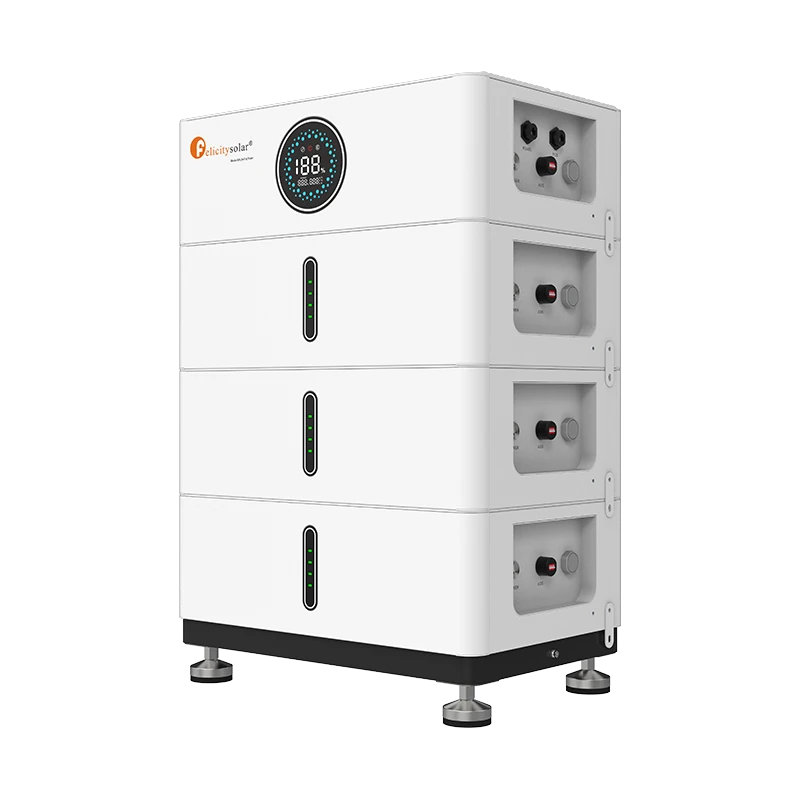

10.24kWh
Up to 4 units connected in parallel.
Overview:
FLS48050SG1

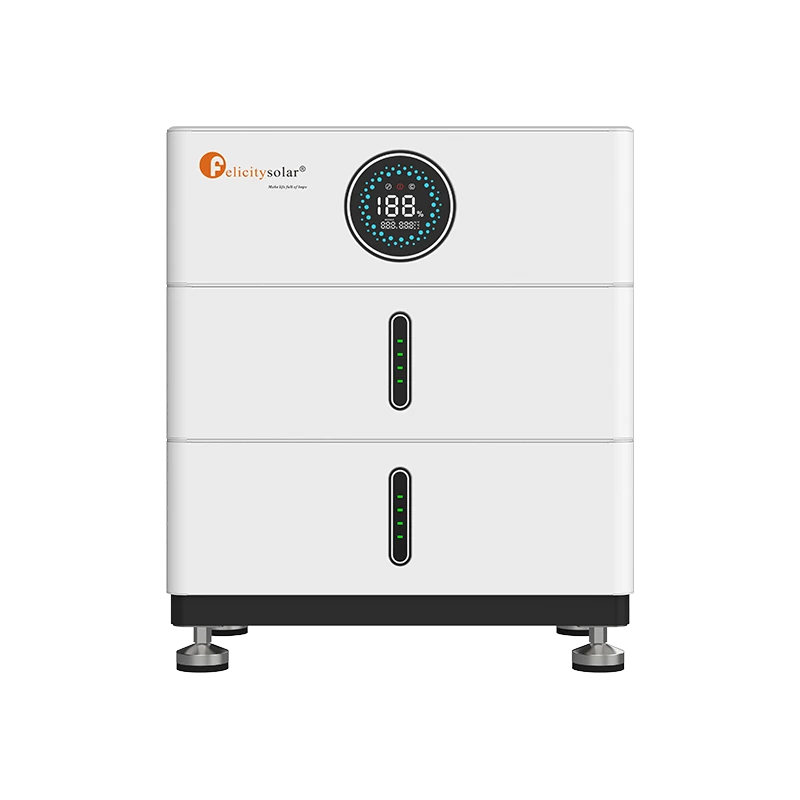

The FLS48050SG1 is a 51.2V / 2.56kWh smart residential LiFePO4 battery system designed for household solar energy storage and backup power. It features built-in WIFI for remote APP monitoring, IP65 protection, smart BMS with full safety protections, and ≥6,000 cycle life. Supporting parallel expansion up to 4 units (max 10.24kWh), RS485/CAN communication, wide inverter compatibility, and floor-mounted installation, it offers stable performance in a wide temperature range. Backed by a 10-year warranty, it provides a safe, modular, and intelligent energy solution for home solar systems, off-grid applications, and emergency backup.
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Multiple Bracket Options
9-Layer Bracket
Medium capacity configuration with high cost performance
13-Layer Bracket
Medium capacity configuration with high cost performance
16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
Factory
Store
Warehouse
Villa
School
Resident
