FLB Series
FLB 48230WG1-H
11.7kWh
230Ah
Low Voltage
Wall-Mounted/Floor-Mounted
Built-in WiFi/Bluetooth
IP65 Protection Level
Built-in aerosol fire extinguisher
Product Introduction

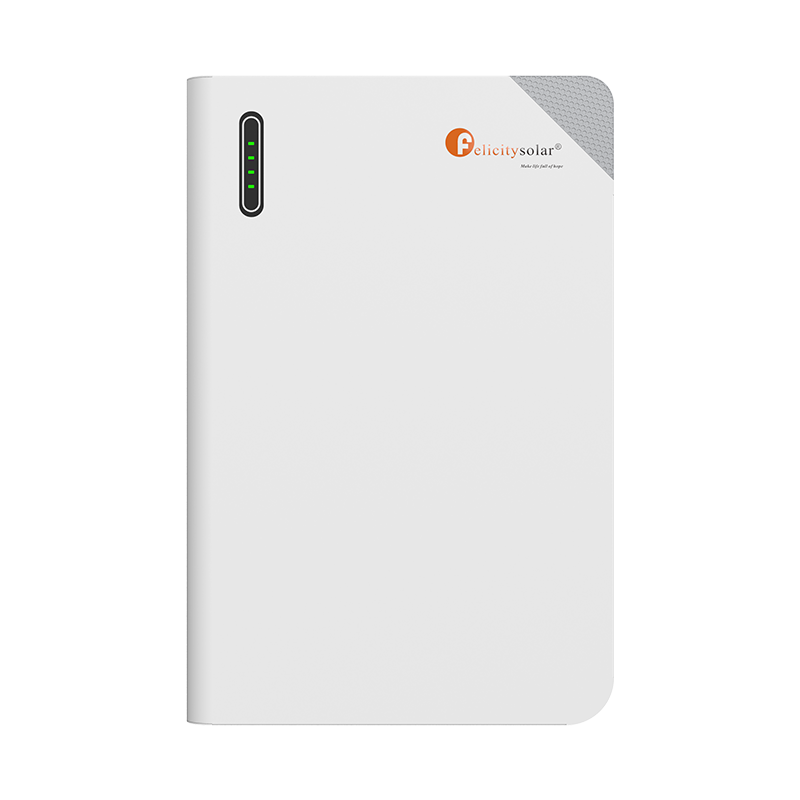

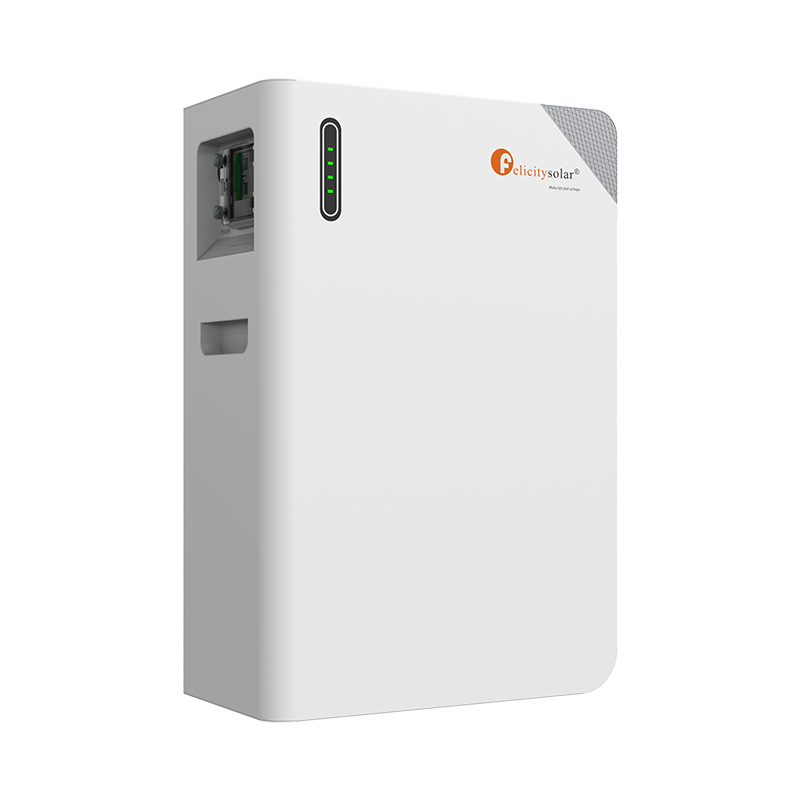

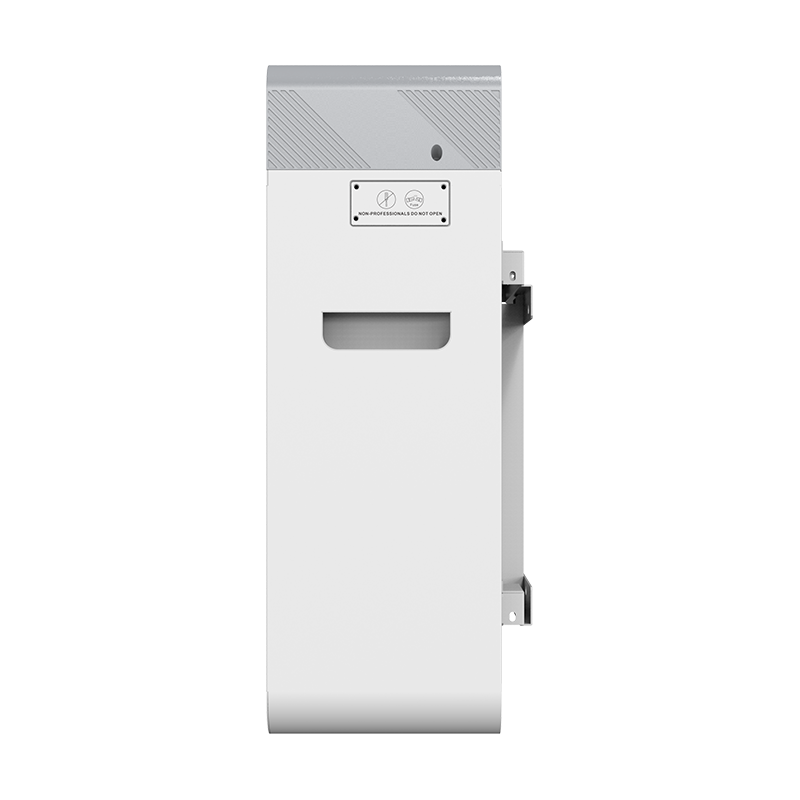

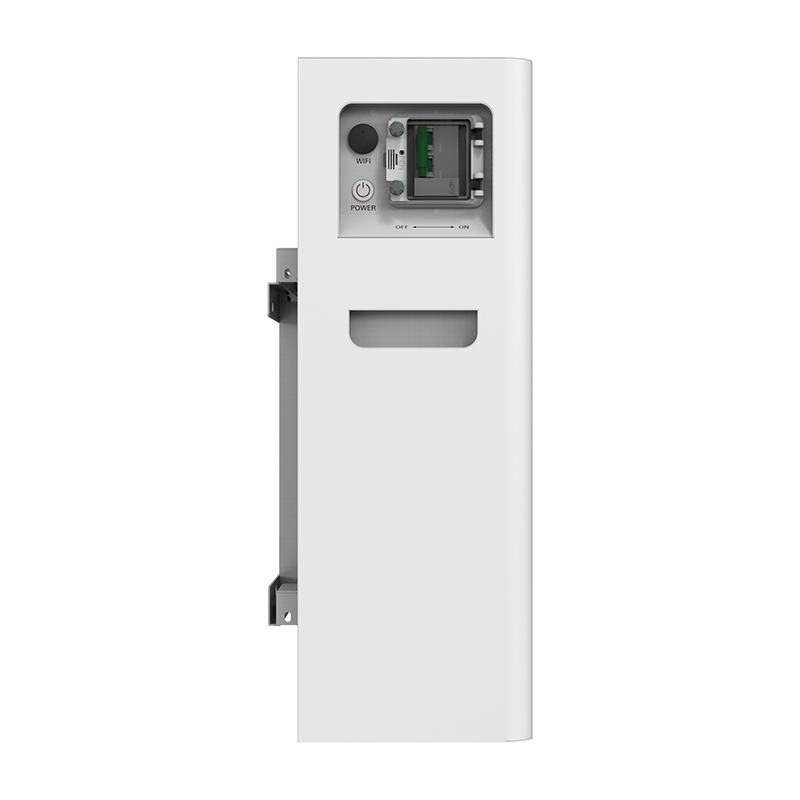

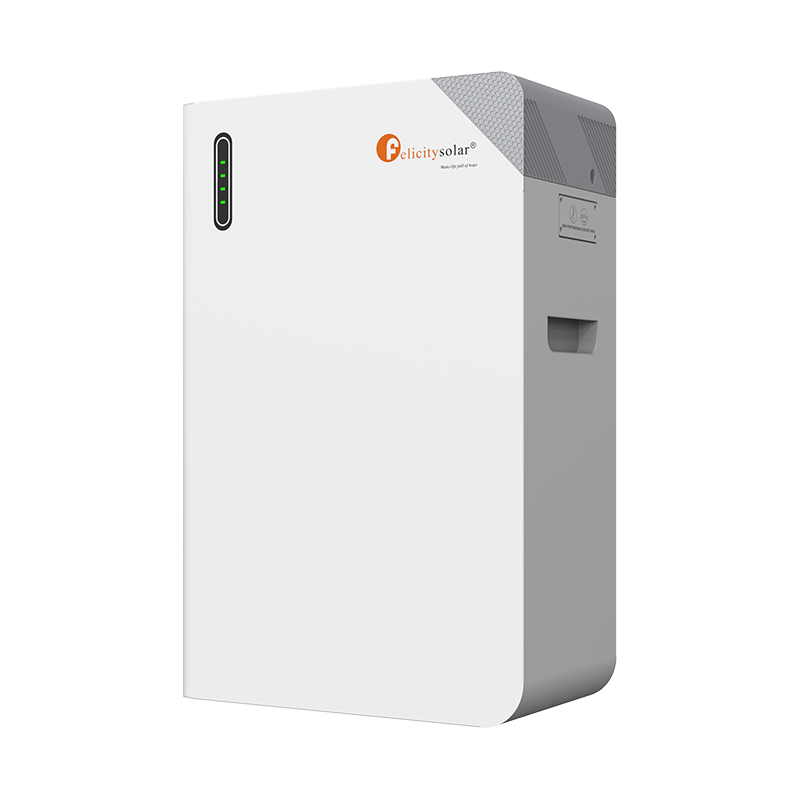

FLB48230WG1-H is equipped with a lithium iron phosphate battery designed for house holduse. Developed based on customer needs and market demands, this advanced battery storage solution provides high-quality, reliable power for various devices. The product features a long life span, suitability for high-temperature environments, and a compact design that requires minimal installation space.
FLB48230WG1-H features a battery management system independently developed by our team. When connected to a grid or photovoltaic system as the power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product independently supplies electricity to household loads.Additionally, multiple units can be connected in parallel to form a high-capacity, multi-module system, meeting long-term energy storage requirements.
FLB48230WG1-H features a battery management system independently developed by our team. When connected to a grid or photovoltaic system as the power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product independently supplies electricity to household loads.Additionally, multiple units can be connected in parallel to form a high-capacity, multi-module system, meeting long-term energy storage requirements.
Product Advantages
• LiFePO4: Higher safe performance and longer cycle life.
• Multiple Protection: Built-in smart BMS, Breaker and Fuse.
• Flexible Installation: Wall-Mounted or Floor-Mounted.
• Wide Compatibility: Compatible with leading inverter brands.
• High Scalability: Capacity up to 374.4kWh with FLB48230WG1-H.
• Built-in WIFI/Bluetooth: Remote monitoring of battery pack data.
• IP65 Protection Level: Suitable for Outdoor Use.
• Equipped with an aerosol fire extinguishing system.
• When the battery experiences over current causing the fuse to blow, it can be easily replaced externally, providing great convenience.
• Multiple Protection: Built-in smart BMS, Breaker and Fuse.
• Flexible Installation: Wall-Mounted or Floor-Mounted.
• Wide Compatibility: Compatible with leading inverter brands.
• High Scalability: Capacity up to 374.4kWh with FLB48230WG1-H.
• Built-in WIFI/Bluetooth: Remote monitoring of battery pack data.
• IP65 Protection Level: Suitable for Outdoor Use.
• Equipped with an aerosol fire extinguishing system.
• When the battery experiences over current causing the fuse to blow, it can be easily replaced externally, providing great convenience.
Model
FLB48230WG1-H
Operating Voltage
44.8-57.6V
Energy
11.7kWh
Scalability
Up to 32 units in parallel(374.4kWh)
Depth of Discharge(DOD)
≥95%
Cycle Life
≥6,000 Cycles
Communication
RS485 / CAN
Protection Level
IP65
Download
- [Certificate for Safe Transport of Goods by Road] 1125003791-7 FLB48230WG1-H
- [Certificate for Safe Transport of Goods by Sea] 1125003791-6 FLB48230WG1-H
- [Certification for Classify of Danger of Batteries] 1125003791-3 FLB48230WG1-H
- [Hazard Information Label] 1125003791-5 FLB48230WG1-H
- [MSDS] 1125003791-4 FLB48230WG1-H
- [UN38.3 TEST REPORT] 1125003791Y-1 FLB48230WG1-H
- [UN38.3 TEST Summary] 1125003791-2 FLB48230WG1-H
for low voltage battery
Compatible Inverter Brands
