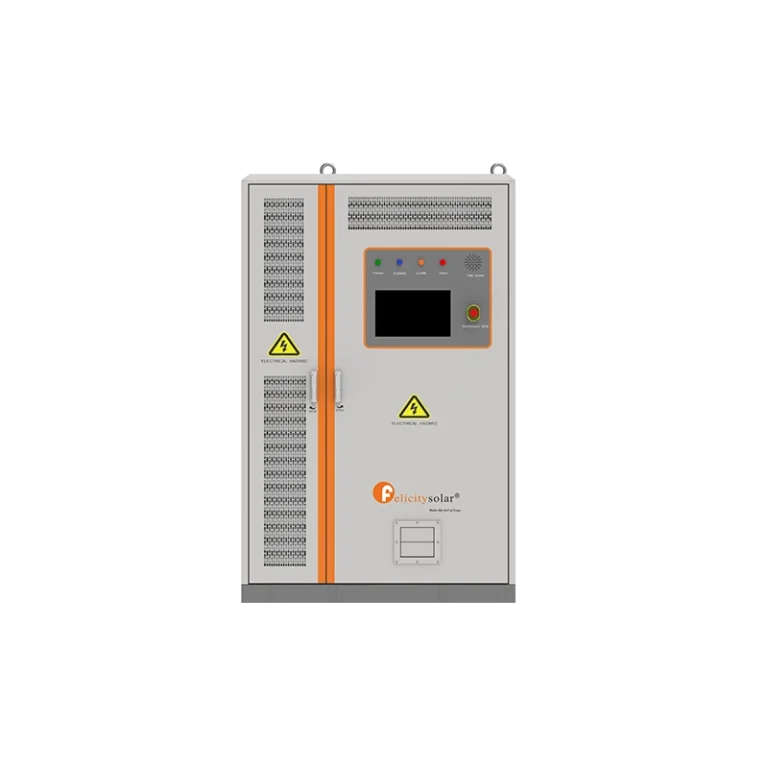

Felicity Matrix
FLM500-125/261
BAT, BMS, PCS, EMS integration
Remote monitoring via Fsolar app
Seamless on-grid and off-grid switching
Fire protection module
C4 anti-corrosion and IP55 cabinet
Liquid-cooling chiller for optimal system temp
Detection with smoke, temp, and immersion sensors
≥ 8000 cycles life
Specifications
| Model | FLM500-125/261 | ||||||
|---|---|---|---|---|---|---|---|
| System capacity | 261.2kWh | ||||||
| Nominal Output Power | 125kW | ||||||
| Cell Type | LFP3.2V/314Ah | ||||||
| System Battery Configuration | 260S1P | ||||||
| Depth of Charge and Discharge | 95% | ||||||
| Cycle Life | ≥8000 | ||||||
| Communication Interface | Ethernet /RS485 | ||||||
| Cooling System | Liquid Cooling | ||||||
| Protection Rating | IP55 | ||||||
Features
Dual Independent Batteries
7" HD Screen
TOU
IP66
Reverse Current Protection
Single Phase Input, Three Phase Output
Superior System Expansion Capability
15kW
High Scalability Energy up to 157.5kWh.
261kWh
Normal Capability
The liquid-cooled all-in-one system seamlessly integrates BAT, BMS, PCS, and EMS into a compact, high-performance solution. Users can monitor it remotely via the Fsolar APP, while 20ms seamless power transfer ensures uninterrupted electricity.
Safety is built in with a fire protection module and reliable detection using smoke, temperature, and immersion sensors. A liquid-cooling chiller maintains optimal operating temperature, and the IP55-rated, C4 anti-corrosion cabinet makes it ideal for outdoor installation. With a lifespan exceeding 8,000 cycles, this system is designed for intelligence, durability, efficiency, and complete peace of mind.
Built for Every Scenario
Engineered for Outdoor Durability in the Harshest Conditions
Turn Efficiency into Real Energy Profit
Max. system efficiency： ≥90%
Liquid Cooling Cell Temperature Difference： ≤3℃
Multi-Sensor Detection.
Smarter Risk Prevention.
Built-in smoke, temperature, and water sensors monitor cabinet conditions in real time, helping detect risks early and protect system operation.
Smart Operation,
Effortless Control
Touchscreen Control for Real-Time Monitoring & Fast Setup
Real Time Monitoring
Enable real-time monitoring on the Fsolar App
IEC 62619
IEC 62477
IEC 63056
IEC 61000
Multiple Bracket Options
9-Layer Bracket
Medium capacity configuration with high cost performance
13-Layer Bracket
Medium capacity configuration with high cost performance
16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
Factory
Store
Warehouse
Villa
School
Resident
