Make Every Watt Power Your Every Moment
Power Expansion
Capacity Increase
Solar Charge Controllers
Long Battery Life
Self-generation. Self-consumption. Long-term Saving.
During the day, solar energy powers your home directly, while excess energy is stored in the batteries for nighttime use. When solar production is low or the grid experiences outages or instability, the stored energy seamlessly takes over.
Enjoy reliable power without worries, and a smoother, more comfortable life.
Flexible Expansion. Sufficient Power.
6 units = 32kW
15units = 225kWh
Customize your solar energy system according to your energy needs, powering appliances such as refrigerators, TVs, lights, and computers. With flexible expansion, the system can easily grow to meet your future energy demands.
Safety matters
Be Safer. Be More Durable
The battery storage system is equipped with an aerosol fire extinguishing system, ensuring safe and reliable indoor installation.
With an IP65 rating, the hybrid inverter delivers stable performance both indoors and outdoors.

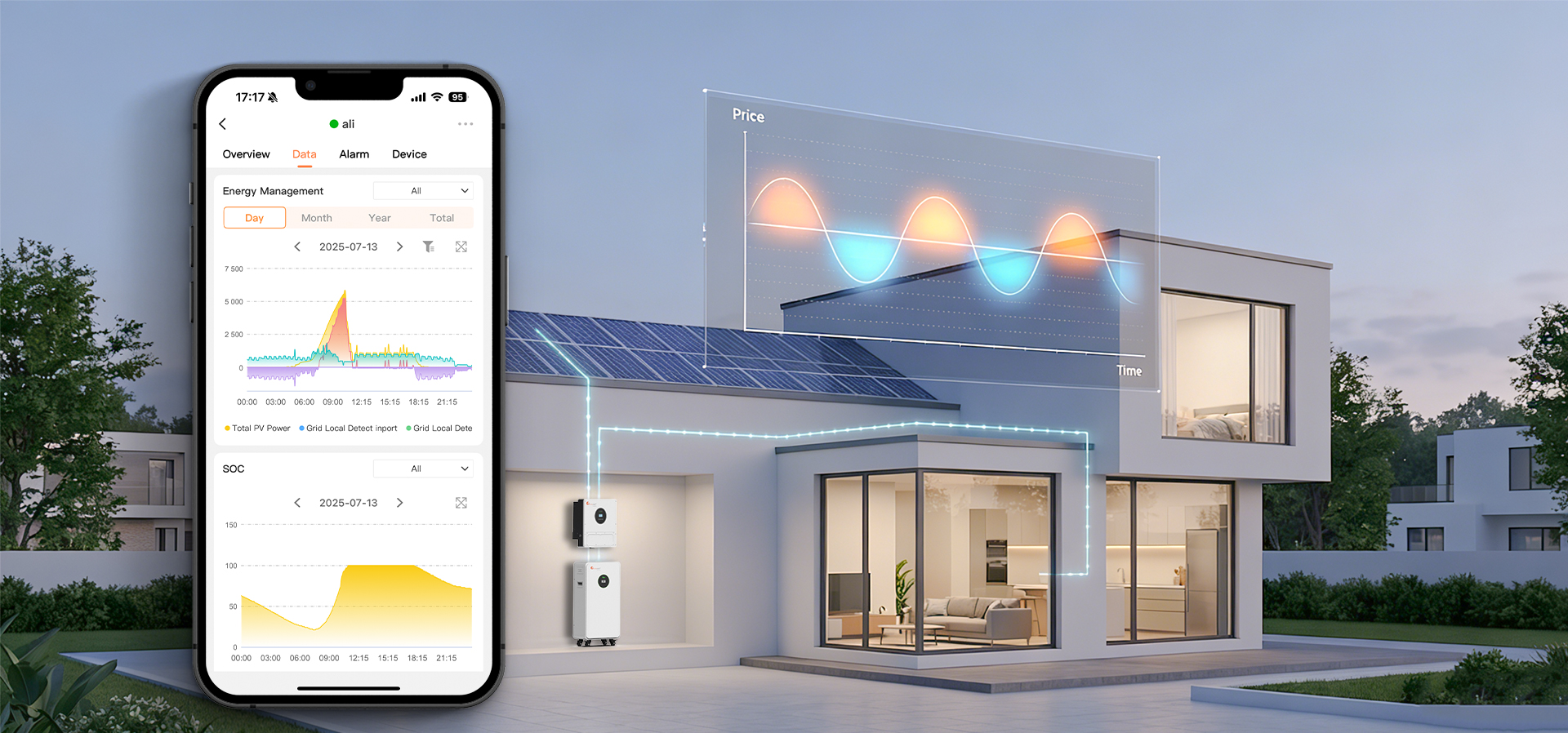

Intuitive. Real-time.
With our self-developed FSOLAR monitoring platform, you can monitor your system performance and access real-time data such as solar generation, electricity consumption, and battery status. Historical data can also be exported for further analysis.
Versatile Scenarios. Cover Your Needs
Whether you live in an off-grid area, operate a store, manage a small warehouse, or work in an office, the system can reliably meet your daily electricity needs, giving you peace of mind.

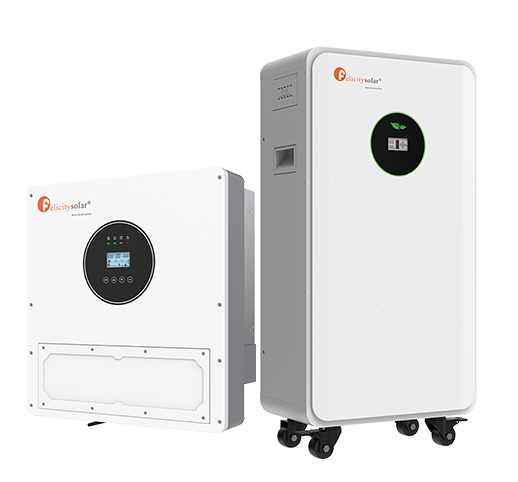

Products Specs
Line Mode
8000W
48V
230Vac
50Hz / 60Hz (Auto detection)
>95% (Rated R load, battery full charged)
Utility/Generator Charging Mode
Input: 90-280Vac
230Vac
Max. Charging Current:150A
Solar Charging
90-450V
10000W(5000W for single PV)
20Ax2(MAX 40A)
Charge Algorithm
AGM Boost CC/CV: 56.4V
Flooded Boost CC/CV: 58.4V
AGM&Flooded Float: 54V
Self - defined&Lithium: Adjustable, up to 60V
Inverter Mode
Pure sine wave
230Vac±5%
50+0.3Hz/60Hz+0.3Hz (Adjustable)
94.5%
Temperature
Operating: 0°C~50°C
Range Storage
: -15°C~60°C
Packing
Net Weight: 24.3kg
Gross Weight: 28.3kg
Product Size: 525x490x189.2mm
Package Dimension: 597x572x267mm
Energy
15kWh
LiFePO4
51.2V
Up to 15 units in parallel(225kWh)
Specs
RS485/CAN
IP21
>6000 Cycles
Floor-Mounted
Built-in smart BMS, Breaker, Fuse
Packing
Net Weight: 118.5kg
Gross Weight: 140.5kg
Product Dimension: 435x880x247mm
Package Dimension: 960x555x450mm
Warrenty
7 Years
GO SOLAR. A LONG-TERM INVETMENT
Let’s enjoy the energy freedom with solar energy storage technology!
