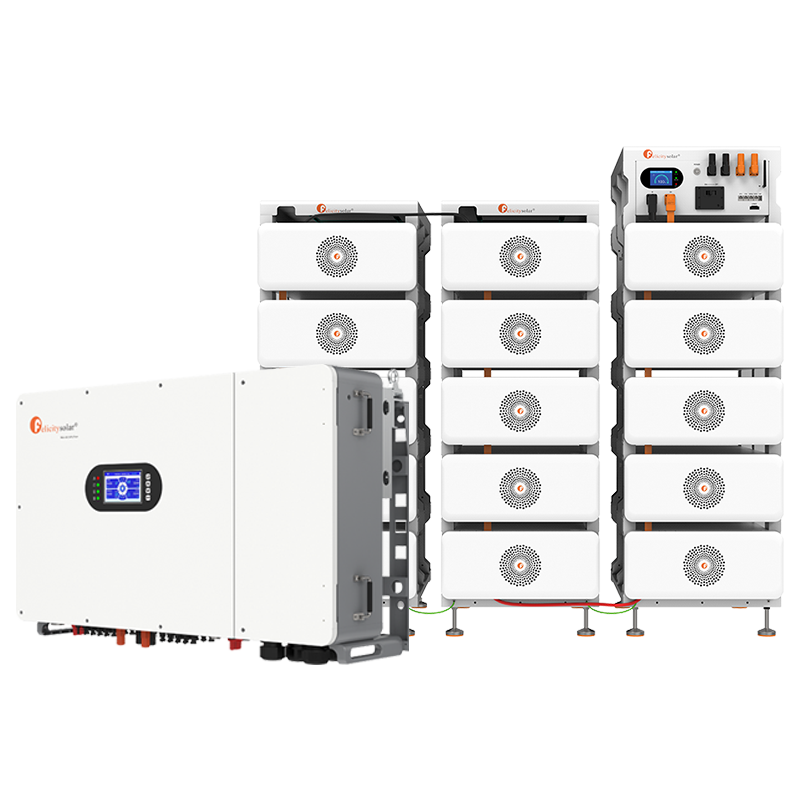

125kW C&I Energy Storage Solution
Built for High-power Applications
Flexible system design with dual battery inputs and 10-channel solar charge controllers for stable high-power operation.
1.5MW
Scalable Power
19.28MWh
Expandable Capacity
241kWh
per Cluster
4 Clusters
in Parallel
2x
Independent Battery Inputs
0ms Seamless Switching
With ultra-fast switching capability, the system ensures seamless transition between grid and off-grid modes.
Scalable Architecture
The inverter supports parallel connection up to 12 units, and the battery supports 4 parallel clusters. Expand as your energy demand grows
Programmable GEN Port. Flexible Connection.
Diesel Generator Mode
Supports setting maximum power thresholds to protect diesel generators from overload and overheating.
Smart Load Mode
Enables automatic smart load control based on preset battery SOC levels or time schedules, helping optimize energy usage and system operation.
Grid-tied Inverter Mode
Compatible with micro-inverter, expanding your solar capacity without major system changes.
Products Specs
Battery Input Data
LFP (LiFePO4)
160~1000Vdc
2 inputs of battery
Max. ChargingCurrent: 120+120(A)
Max. discharging: 120+120(A)
PVString Input Data
250kW Max. DC Input Power
1000Vdc Max. DC Input Voltage
10 MPP Trackers
2 Strings Per MPP Tracker
ACInput/Output Data
125kW Rated ACInput/Output Power
137kVA Max. AC Input/Output Power
220/380,230/400 Vac (-20%~+15%)
50/60 Hz (45~55 Hz/55~65 Hz)
3L+N+PE
Safety
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4110
Standards
Safety EMC/Standard: IEC61000-6-2/4,CEI0-16
General Data
IP66
-40to 60°C (>45°Cderating)
RS485/CAN
Wall-mounted
WIFI/Bluetooth/4G/LAN(optional)
Upto 12 in parallel
10 Years Warranty
-
Net Weight: 156kg
Gross Weight: 200kg
Product Size: 1271*814.5*379.5mm
Package Dimension: 1410*960*646mm
Energy
16.07kWh | 51.2V | 314Ah
LiFePO4
DOD: 90%
Up to 15 units in parallel(225kWh)
Specs
IP20
>8000 Cycles
Module Stacking
RS485/CAN /Enthernet/WiFi(2.4G)
Built-in Smart BMS, MCCB with shunt trip function, Fuse
Certification
CE/IEC 62619/IEC62040/UN38.3
Control Module
Product Weight Approximate: 28.8KG
Package Weight Approximate: 42.2KG
Product Dimension: 780x525.4x180MM
Package Dimension: 890x602x333MM
Battery Module
Product Weight Approximate: 127.2KG
Package Weight Approximate: 146.5KG
Product Dimension: 819.5x525.4x260MM
Package Dimension: 925x560x405MM
Battery Designation: IFpP74/176/120/[1P16S]E/-20+50/90
Warrenty
10 Years
