Product name:90w solar street light all in one
Product model:FL-A2-90W

CE ROHS approved 90w solar street light all in one integrated lamp with motion s

The product specification download
Product Description

CE ROHS approved 90w solar street light all in one integrated lamp with motion sensor

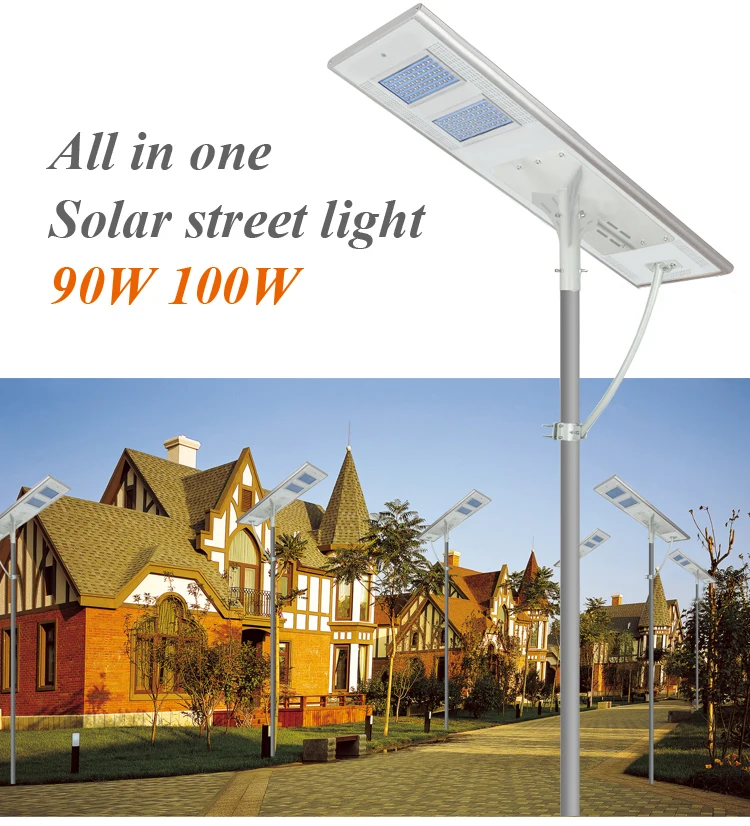

90w solar street light all in one

90w solar street light all in one 90w solar street light all in one 90w solar street light all in one
90w solar street light all in one

>>All in one solar street light introduced

Solar energy lamp is integrated by the LED light +Solar panel+Controller:+Microwave sensor

+Lifepo4 battery etc. Widely used in, schools, factories, country road,the mountains, roads,

parks, villas, desert areas.

90w solar street light all in one

>>Mainly Composed



--LED light : 90W / 100W

--Solar panel: MONO 140W 42V

--Controller: MPPT

--Microwave sensor: Body induction

--Lithium ternary battery: 90W 36AH 22.2V  /  100W 40AH 22.2V

--LiFePO4 battery: 90W 33AH 25.6V  /  100W 36AH 25.6V

Product Parameters

90w solar street light all in one

Product Parameters:(Lithium ternary battery)

Model 8W 15W 30W 40W 50W 60W 70W 90W 100W
Solar panel(MONO)

  17W 17V

36W 16V

55W

18V

80W

24V

80W

24V

100W

42V

100W

42V

140W

42V

140W

42V

High capacity lithium

battery (Built-in)

  6Ah 11.1V

11Ah 11.1V

24Ah

11.1V

36Ah 11.1V  40Ah  11.1V 24Ah 22.2V 26Ah 22.2V 36Ah 22.2V 40Ah 22.2V
Working mode   Automatically Adjust
Solar panel charge time

(with strong sunlight)

 ≥8 Hours
Rainy days support  1-2 days with

full charging

  2-3 days with full charging
Working time (per day)     ≥12 hours
Color temperature   3000-7000K(optional)
Light pole diameter   70-110MM
Storage temperature   0-55℃
Operating humidity   90RH%≤
Waterproof level   IP65
Package dimensions(mm) 610*340*135 820*465*230 1125*465*230 1460*465*230 1315*670*120 1730*670*120



Product Parameters:(LiFePO4 battery)



Model 30W 40W 50W 60W 70W 90W 100W
Solar panel(MONO) 55W 18V 80W 24V 80W 24V 100W 42V 100W 42V 140W 42V 140W 42V
High capacity lithium

battery (Built-in)

22Ah 12.8V 32Ah 12.8V 36Ah 12.8V 21Ah 25.6V 24Ah 25.6V 33Ah 25.6V 36Ah 25.6V
Working mode Automatically Adjust
Solar panel charge time

(with strong sunlight)

≥8 Hours
Rainy days support 1-2 days with

full charging

3 days with  full charging
Working time (per day) ≥12 hours
Color temperature 3000-7000K(optional)
Light pole diameter 70-110MM
Storage temperature 0-55℃
Operating humidity 90RH%≤
Waterproof level IP65
Package dimensions(mm) 1126*465*230 1460*465*230 1315*670*120 1730*670*120mm


90w solar street light all in one

>>Main Advantages

1. No need of cable installation or special light pole, functional components modular design. Installation,

     maintenance and replacement is convenient and quick .

2. High efficiency solar panel. High transfer rate, charge full quickly.

3. Using high capacity lithium ion battery, high energy, long life, light weight, green and environmental protection,

    do not produce any harmful substances.

4. Using LED lighting source, no diffuse reflection effect, high light efficiency. Coupled with the unique secondary

     optical design, exposures to the wider region, This achieve energy saving again to improve the efficiency of

    light. And the LED light source has a long service life, high luminous efficiency; the advantage of light color

   uniform, is also a best product of environmental protection.

5. The Shell adopts aluminum, which have a advantage of light weight, corrosion resistance, wear resistance

    and other characteristics. Ensuring product to adapt to the humid and hydrochloric acid environment.

6. Control system adopts industrial-grade components manufacturing, which can adapt to all kinds of wicked

   environment and ensure the street light normally on.



Test Report

90w solar street light all in one

90w solar street light all in one

Application Cases

90w solar street light all in one



-- Garden, Residence, Courtyard Crosswalk, Roadway

-- Mine, Parking lot

-- Area with no electrical supply
